Zonal Valve Box

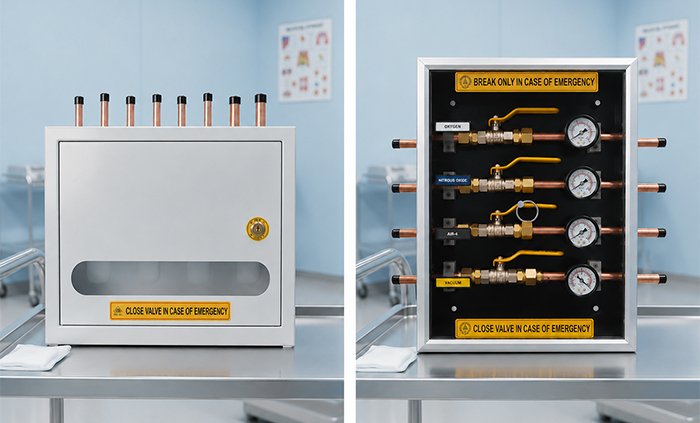

The “Bravo” series Zonal Valve Boxes are fitted with Isolation Valve/Ball Valves to isolate a section, area or zone of a medical establishment to avoid supply disruptions to the entire establishment in case of periodic maintenance, emergency or planned future expansion.
Features
- Isolation of area in case of periodic maintenance, emergency or planned future expansion.
- Valves housed in a ergonomical and stylish metallic box.
- Optional NIST connections for Emergency Gas Supply.
- Full Bore Ball Valves are Medical Compatible
- Acrylic window for full visibility of pressure gauges
- Flip open facility for ease during emergency.
- Support 1 to 7 individually monitored gases.
- In case of power failure pressure readings can be monitored.
- All Copper and Brass components and joints are duly Oxy-Cleaned.
Technical Specifications
We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

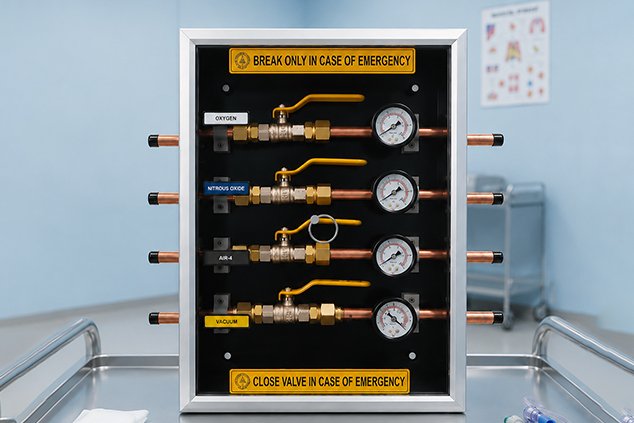

Zonal Valve Box – Bravo Side
In this side-entry model, the copper pipe extensions protrude horizontally out of the left and right sides of the box shell for easy installation.
- Configuration: 1-7 Gases
- Flow Rate @ 4.2 Bar: 1500 LPM
- OD of Stub Ends (Positive Gases) : 15mm
- OD of Stub Ends (Negative Gases): 22mm
- Closing / Opening of Valves: 90 Degree
- Isolation Valves: RB/Matrix
- Gauges: Vika/Baumer/H Guru/PMI
- NIST Connections: Optional and Customer demand specific
- Gas Service: Designed to suit all gases
- Input and Output: Side Entry and Exit

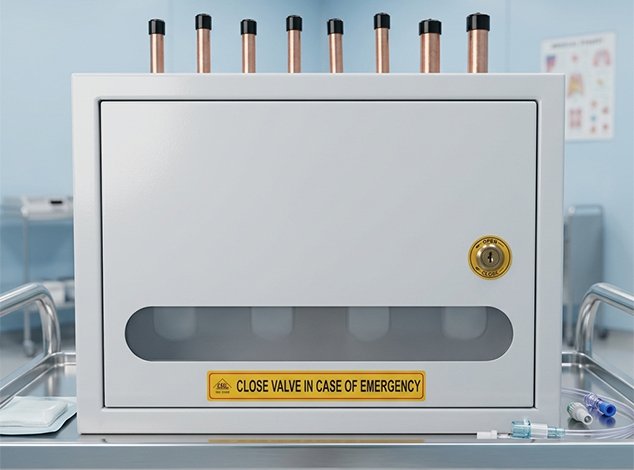

Zonal Valve Box – Bravo Top
In this top-entry assemblies pipe extensions exit and enter directly out of the top of the metallic box housing. This configuration cuts horizontal wall space requirements by 50% or more
- Configuration: 2-6 Gases
- Flow Rate @ 4.2 Bar: 1500 LPM
- OD of Stub Ends (Positive Gases) : 15mm
- OD of Stub Ends (Negative Gases): 22mm
- Closing / Opening of Valves: 90 Degree
- Isolation Valves: RB/Matrix
- Gauges: Vika/Baumer/H Guru/PMI
- NIST Connections: Optional and Customer demand specific
- Gas Service: Designed to suit all gases
- Input and Output: Top Entry and Exit
