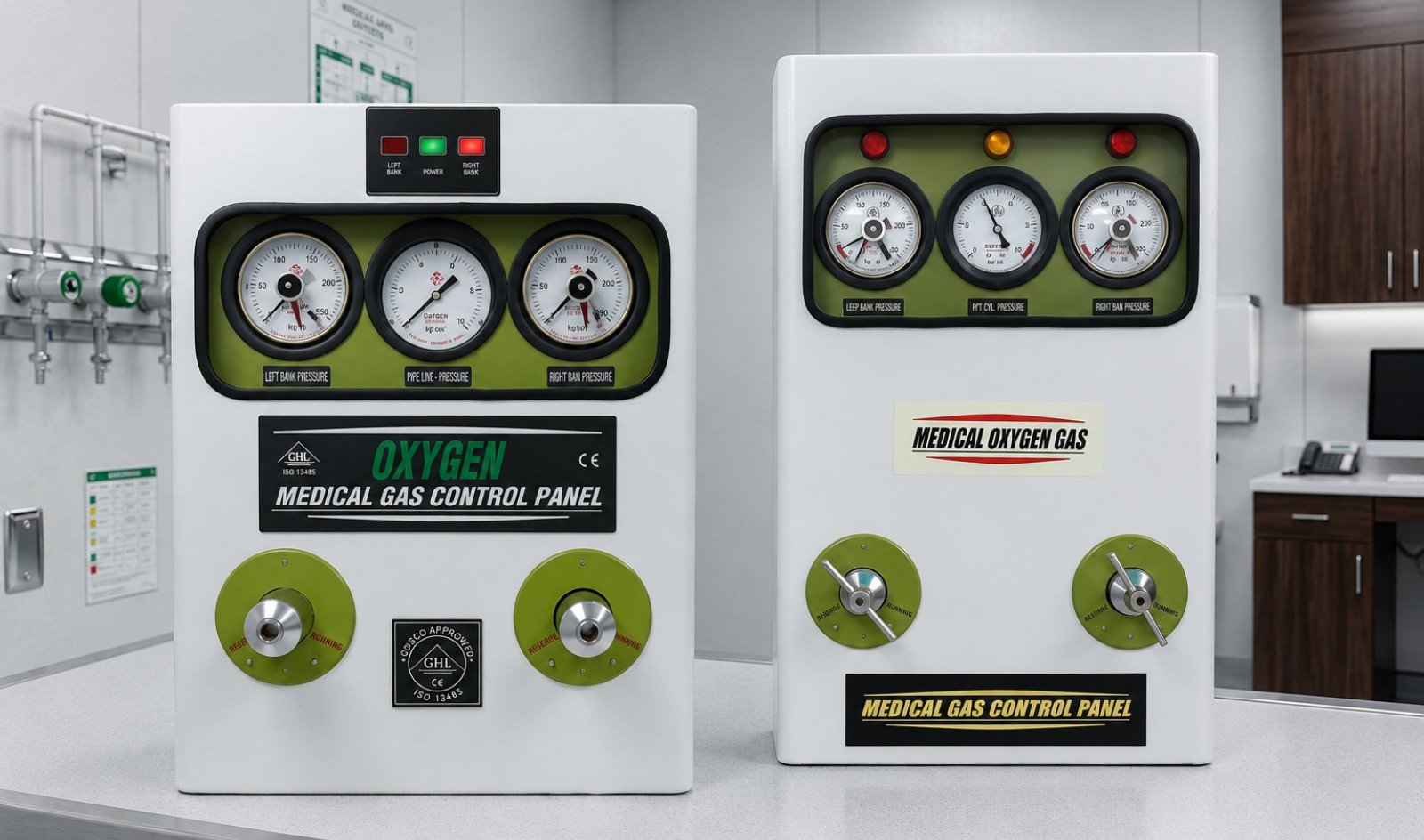

Control Panel – Semi Automatic
The Omega series of these Semi-Automatic Changeover Panels are designed to ensure that the pressure coming from the Gas Cylinders is adjusted accordingly to ensure a controlled supply of medical gases to the medical establishment with Manual resetting between manifolds. When the Running bank turns empty it gives an audio-visual warning and a changeover to the Reserve bank is achieved to maintain a continuous supply. Now, a manual reset of pressure settings needs to be done from RESERVE to RUNNING and vice versa to ensure continuous supply.
Features
- Logic Controlled Semi-Auto Changeover Panel for Pneumatic Changeover with Manual reset
- Electric Contact Pressure gauges for triggering Alarm
- High Flow output – 1000 LPM @ 4.2 Bar
- Visual and Audio Signals
- Fail Safe Control System in the event of power loss
- Electrical Connections are pre-wired
- Optimum utilization of gas in cylinders
- All Copper and Brass components and joints are duly Oxy-Cleaned.
Technical Specifications
We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

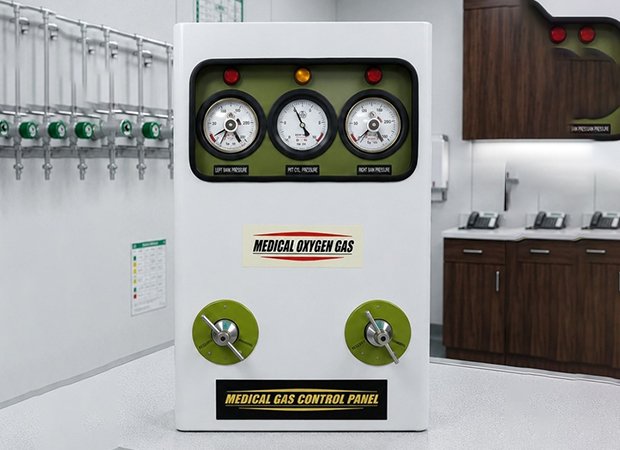

Semi Automatic Control Panel – OMEGA SEMI REGULAR
The regular model comes with both Inlet and Outlet connections at the top and is to be fitted directly to the manifold.
- Display: Analogue Display in KG with LED Indicators
- Switching Mode: Logic Controlled Pneumatic Switching, Manual Reset
- Pressure Sensing Device: Electric Contact Gauge
- Alarming System: Audio and Visual Signal
- Manifold Port (Inlet): ½” BSP Female Connection (Top)
- Supply Regulator Pressure: 4.2 kg/cm2
- Power Supply: 220 Volt AC
- Flow (LPM): 1000 LPM
- Gas Service: Designed to suit all gases

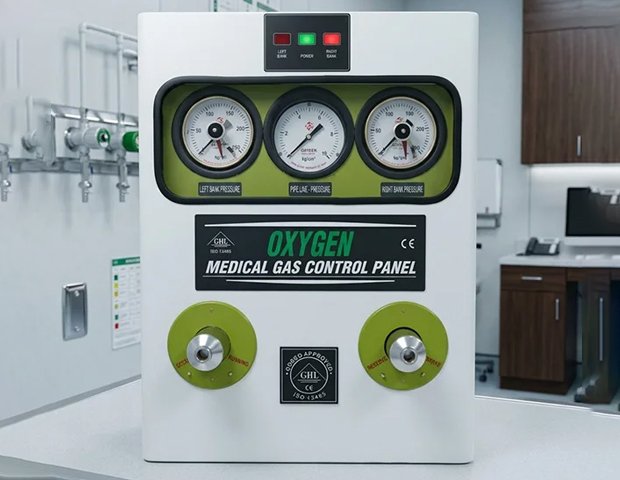

Semi Automatic Control Panel – OMEGA SEMI COMPACT
The new and compact model comes with Inlets on both sides of the panel and Outlet at the top end of the panel. The Inlets are to be connected with the manifold through copper tail pipes.
- Display: Analogue Display in KG with LED Indicators
- Switching Mode: Logic Controlled Pneumatic Switching, Manual Reset
- Pressure Sensing Device: Electric Contact Gauge
- Alarming System: Audio and Visual Signal
- Manifold Port (Inlet): ½” BSP Male Connection (Top)
- Supply Regulator Pressure: 4.2 kg/cm2
- Power Supply: 220 Volt AC
- Flow (LPM): 1000 LPM
- Gas Service: Designed to suit all gases
