Theatre Suction Unit
A Theatre Vacuum Unit, also known as a Theatre Suction Trolley, is a portable medical device used in hospitals and clinics to remove fluids and gases from the surgical site during procedures. It consists of a trolley with wheels, a vacuum regulator, and a safety jar to collect suctioned fluids.
Features
- Effortless Mobility with 5 Castor Wheel base.

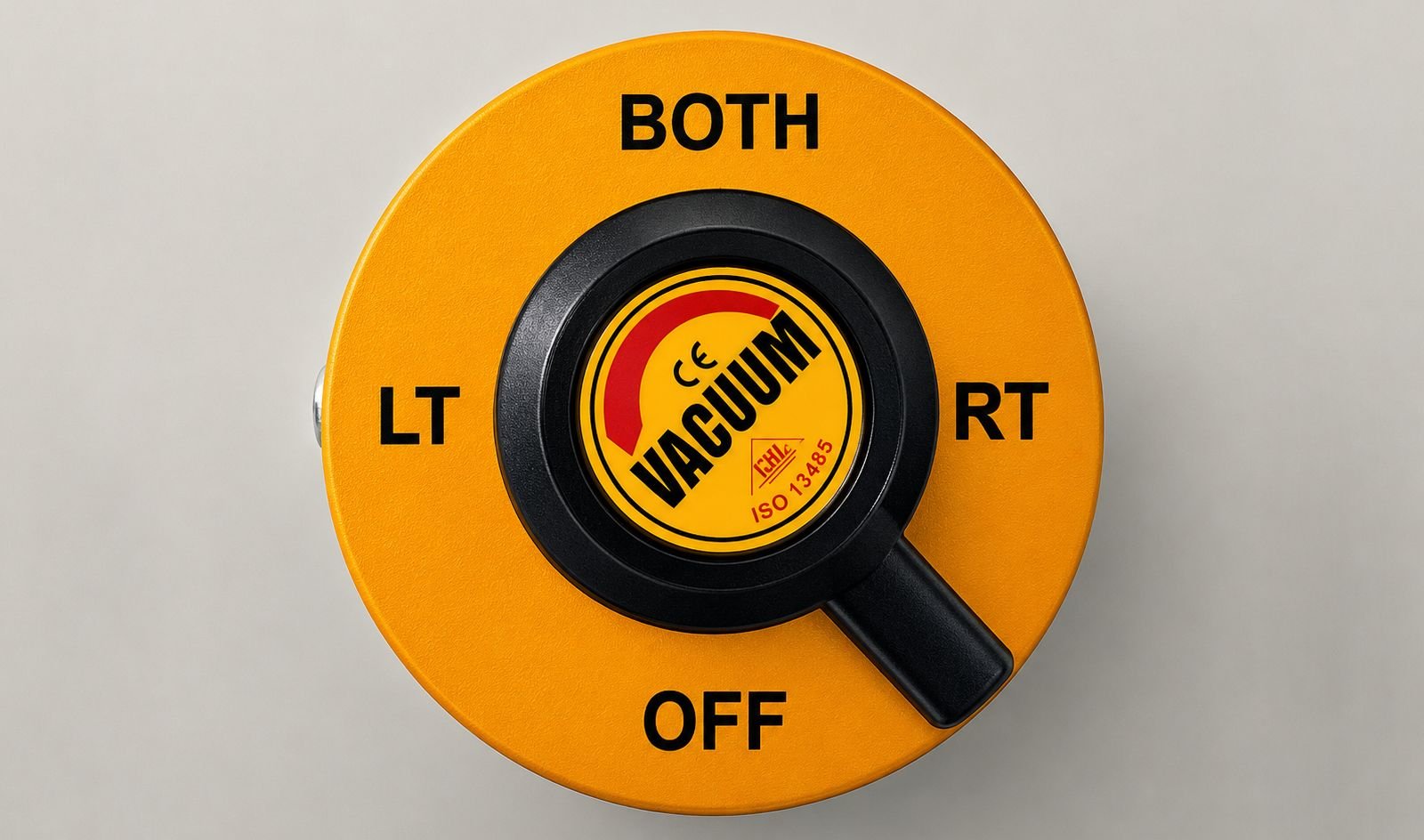

- Comes with a 3 Way Selector Switch for suction with Left/Right/Both and Off option
- Connects to the Centralized Vacuum System
- No electrical or battery support required
- Comes with 2 nos of Suction Jars of 2000ml/4000ml capacity each with jar holders
- Interrupts suction to help prevent fluid carryover into the regulator or central vacuum system.
- Clear and Legible scale on Suction Jars (2L/4L)
- Polycarbonate (Impact Resistant) Suction Bottles are Autoclavable at 121°C
Technical Specifications
We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

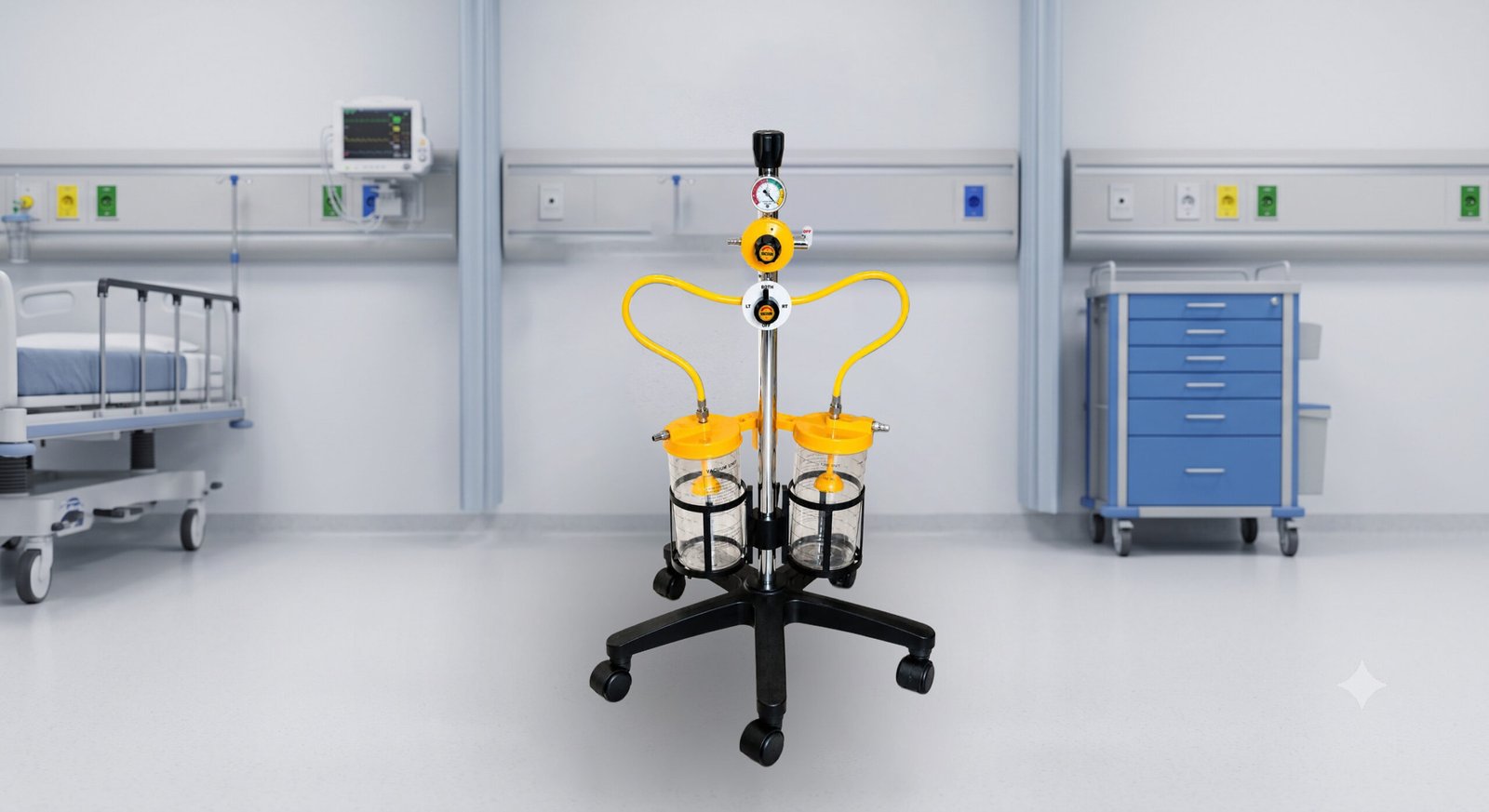

Vacuum Unit – Theatre Suction (Vac-OT)
This Theatre Vacuum Unit generates a controlled negative pressure to maintain a clear and visible surgical field for surgery.
- Product Construction : SS Stand mounted on Plastic 5 Castor Wheel Base
- Inlet Port : Tapered hose barb (6mm Dia) from Centralized Vacuum
- Filter : Optional Anti-bacterial filter
- Vacuum Range: 0-760mm/hg
- Unit Configuration: 1 nos Vacuum Regulator (0-760mmhg), 1 nos 3 Way Selector Switch and 2 nos of 2000ml/4000ml Jar
- Working Temperature: 10°C to 30°C
