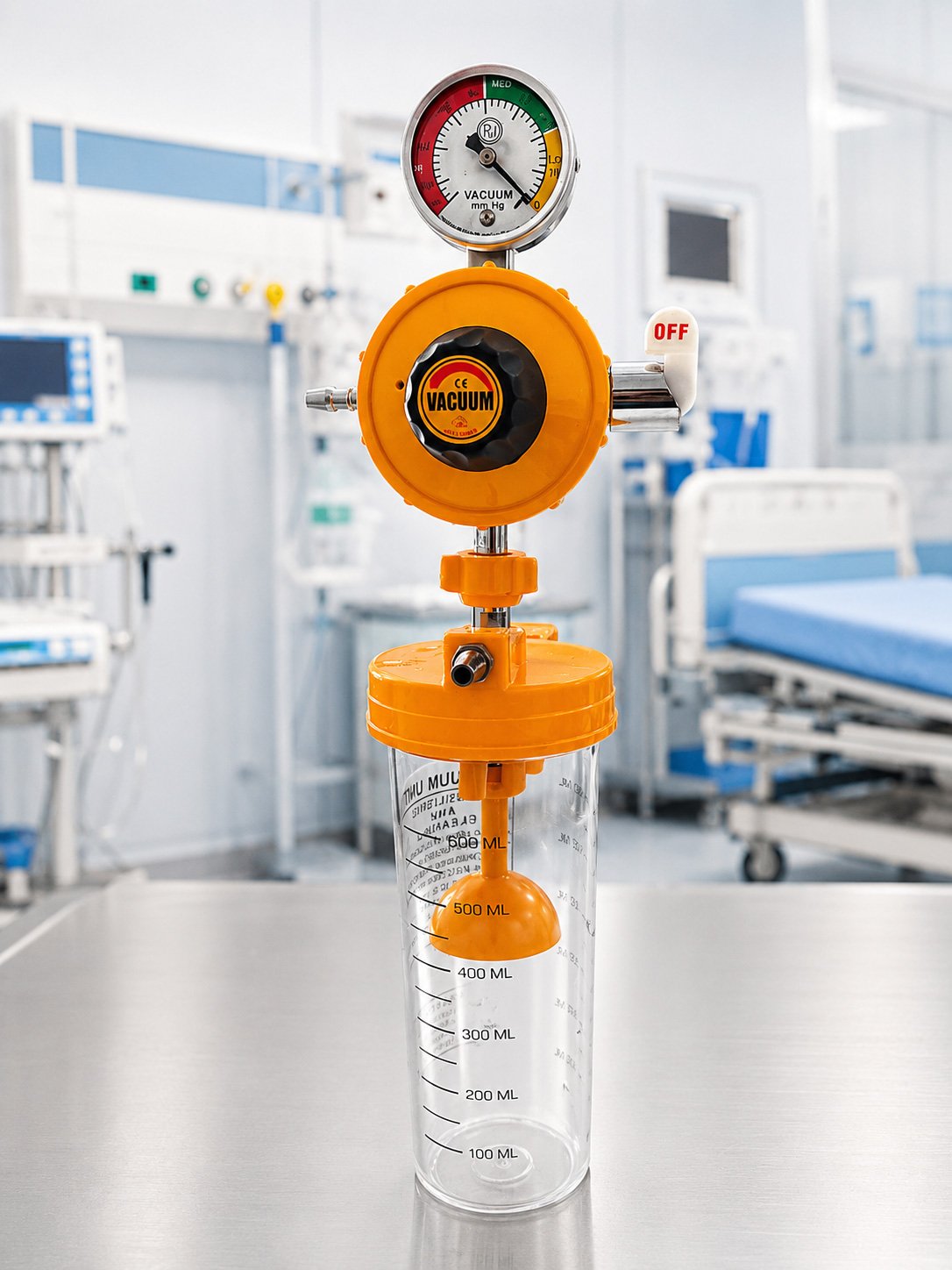

Vacuum Unit
Vacuum Unit is an integrated suction unit (Suction Regulator + Collecting Jar) designed to drain the organic fluids or secretions from the patient. The device is intended to control the amount of vacuum from a central vacuum pipeline system and also to protect suction regulators and central vacuum systems from bacterial contamination.
Features
- On/Off button allows the unit to start and stop instantly without losing settings.
- Standard Outlet with 3/8 BSP Female to suit all standard Suction Jars
- Tapered hose barb (6mm Dia) for Vacuum Inlet
- Precision control to ensure accuracy
- Available for both 0-760mm/hg and 0-200mm/hg range
- Suction Jars are Autoclavable at 121°C
- Clear and Legible scale on Suction Jars
- Polycarbonate (Impact Resistant) Suction Bottles
- Liquid holding capacity of 100ml, 600ml, 1000ml and 2000ml
Technical Specifications
We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

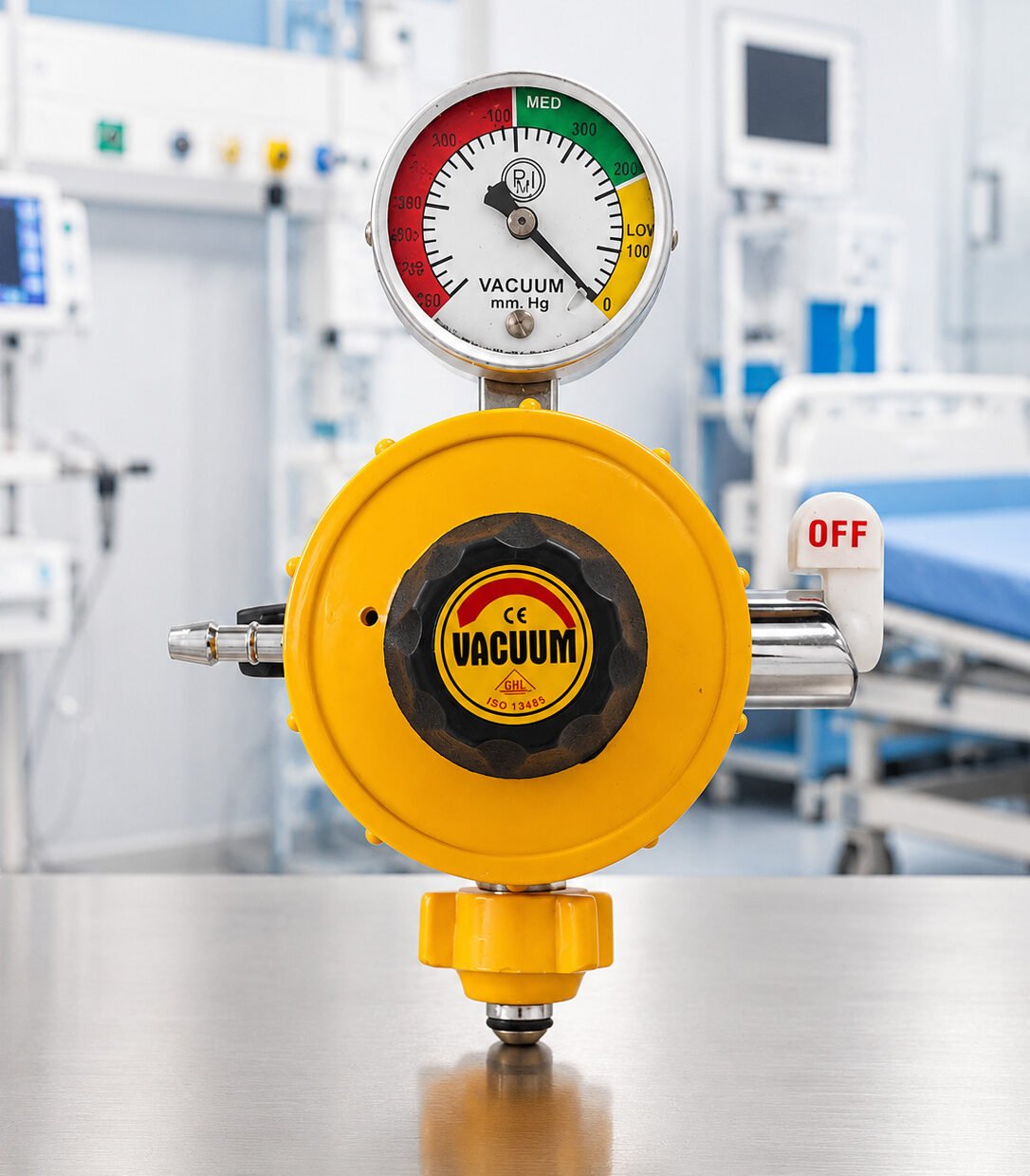

Vacuum Regulator (Vac Care)
A “VAC- Care Vacuum Regulator” safely reduces high central pipeline vacuum to controlled levels for adult patient care.
- Regulator Material: ABS Cap and Aluminum Body
- Inlet Port: Tapered hose barb (6mm Dia)
- Outlet Port: 3/8 BSP Female
- Filter: Optional Anti-bacterial filter
- Vacuum Range: 0-760mm/hg
- Gauge: Indigenous Bourdon Tube (50mm)
- Accuracy: (+/-) 10% of Value

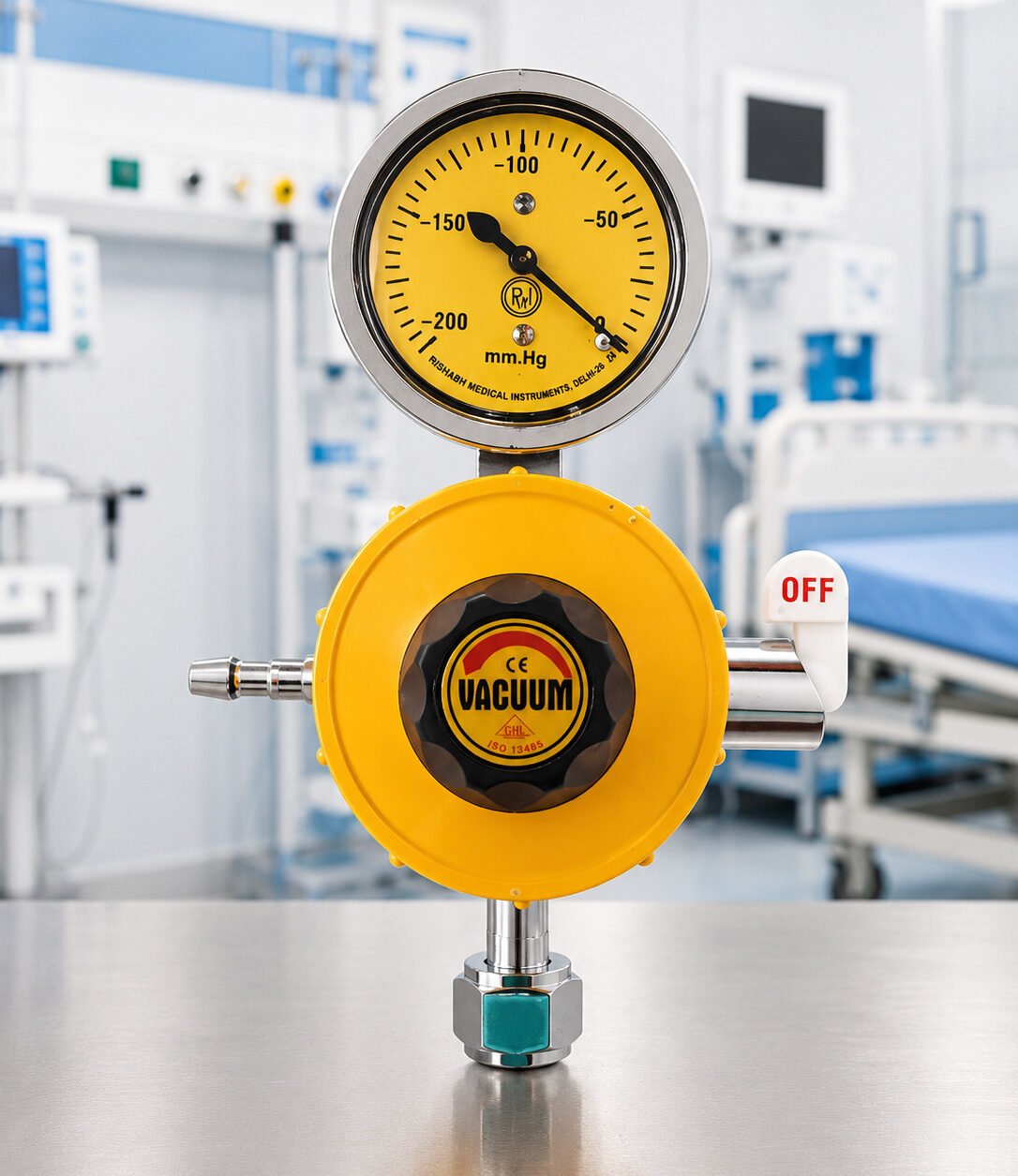

Vacuum Regulator (Vac Neo)
A “VAC-Neo Vacuum Regulator” safely reduces high central pipeline vacuum to controlled levels for neonatal patient care.
- Regulator Material: ABS Cap and Aluminum Body
- Inlet Port: Tapered hose barb (6mm Dia)
- Outlet Port: 3/8 BSP Female
- Filter: Optional Anti-bacterial filter
- Vacuum Range: 0-200mm/hg
- Gauge: Indigenous Bourdon Tube (63mm)
- Accuracy: (+/-) 10% of Value

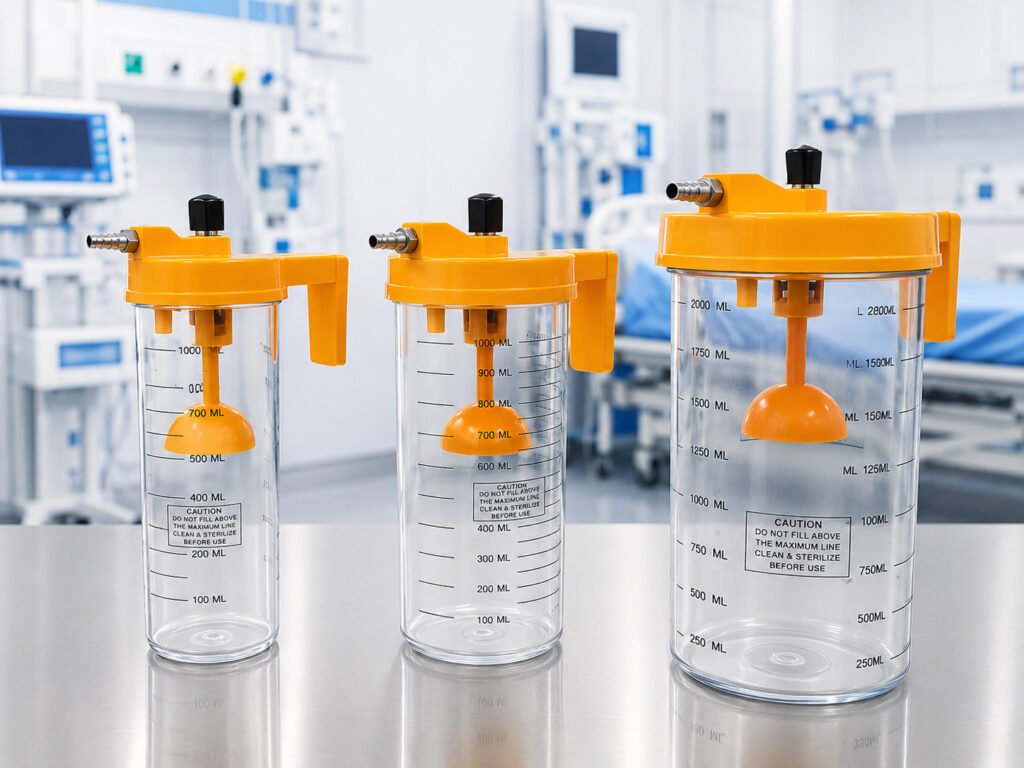

Vacuum Jar (Vac Jar)
A vacuum jar is a specialized medical container used alongside a wall-mounted vacuum system to collect and safely contain bodily fluids extracted during patient care or surgical procedures
- Regulator Material: ABS Cap and Polycarbonate Jar
- Inlet Port: 3/8 BSP Male
- Outlet Port: Tapered hose barb (6mm Dia)
- Filter: Optional Anti-bacterial filter
- Liquid Holding Capacity:100ml, 600ml, 1000ml, 2000ml
- Calibration: Clear and Legible Graduation scale
- Sterilization: Autoclavable at 121°C
