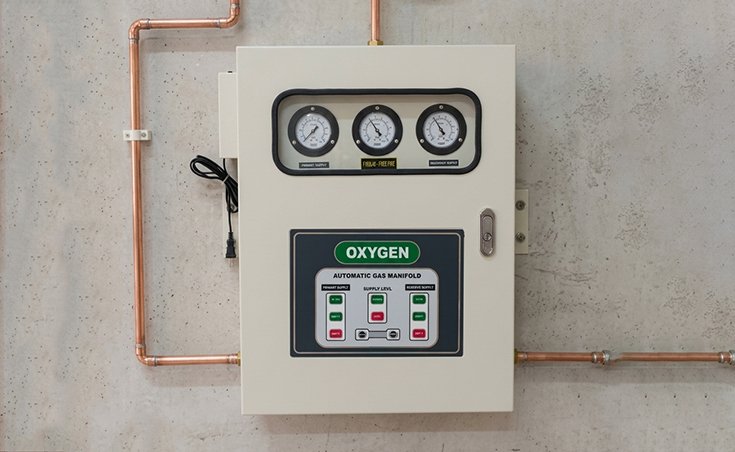

Control Panel – Changeover Only
A medical changeover panel is a critical component of a hospital’s Medical Gas Pipeline System (MGPS). It maintains an uninterrupted gas supply (e.g., Oxygen) by automatically switching between a primary Liquid Medical Oxygen (LMO) tank and a secondary high-pressure reserve cylinder manifold.
Features
- Constantly monitors primary supply & triggers changeover when the liquid tank drops pressure.
- LED Status Indicators
- Automatic Changeover between Two Different Sources of Gas
- 63mm Gauges for pressure display
- Visual and Audio Signals
- Electrical Connections are pre-wired to a termination box
- The panel does not regulate gas it only initiates changeover on low pressure
- All Copper and Brass components and joints are duly Oxy-Cleaned.
Technical Specifications
We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.
Changeover Panel (Two Source) – Omega – Changeover

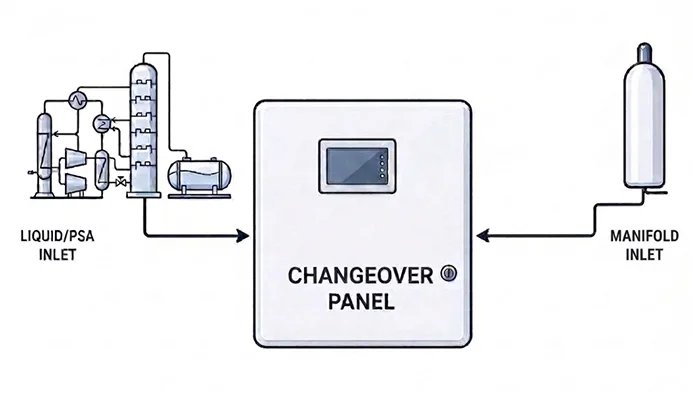

A Changeover Panel seamlessly switches a hospital’s pipeline supply between a Primary (LMO/PSA) and a secondary backup source, such as a high-pressure cylinder bank.
- Display: Analogue with LED Indicators
- Switching Mode: Logic Controlled Solenoid Based (Electronic)
- Liquid/PSA Input Port (Primary): ½” BSP Male Connection
- Secondary Input Port: ½” BSP Male Connection
- Output Port: 5/8” BSP Male Connection
- Power Supply: 220 Volt AC
- Supply Pressure: 4.2 kg/cm2
