Medical Gas Alarms
The “Apollo” series of Medical Gas Area Alarm System is used to monitor the pipeline pressures and trigger an Audio-Visual Alarm in case the pressure values breach the set limit. The Audio warning can be silenced by virtue of a mute switch; however, the Visual warning continues to blink as long as the pressure values don’t return to normal. A test switch is additionally provided to check the integrity of the Alarm System.
Features
- Support 1 to 6 individually monitored gases.
- Alarm System housed in a ergonomical and stylish metallic box.
- Optional NIST connections
- Audio-Visual Alarm with Illuminated LED Display for High/Low/Normal
- Provision to alter the threshold pressure setting in consultation with Authorized Personnel
- Pressure Unit in PSI/KG
- Audio Mute Available
Technical Specifications
We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

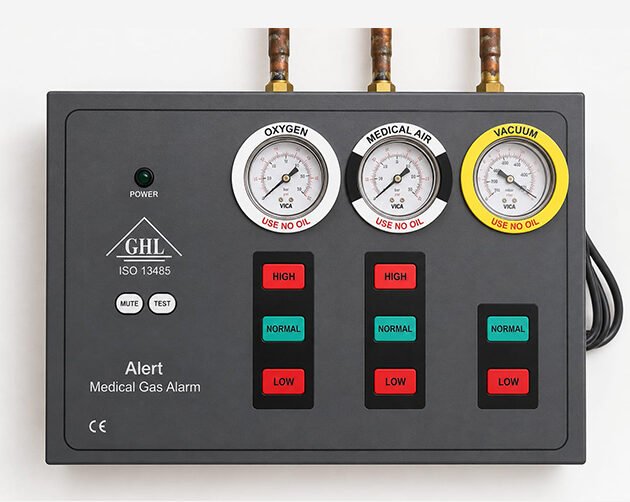

Medical Gas Analogue Area Alarm System – Apollo
An Analogue Area Alarm unit features pressure gauges and visual/audible indicators to alert staff instantly if gas levels fall outside the set limits
- Display: Analogue Display in KG/PSI with High/Low and Normal LED Indicators
- Body and Finish: Powder Coated MS Hinged Box
- Pressure Sensing Device : Pressure Switches
- Alarming System: Audio and Visual Signal with Mute Facility
- NIST Connections: Optional and Customer demand specific
- Inlet Port for Gases: 3/8 BSP nut with 12mm Nipple
- Configuration: 1 Gas to 6 Gas
- Power Supply: 220 Volt AC
- Gas Service : Designed to suit all gases
- Temperature Span: 0 – 50 Degree Celsius

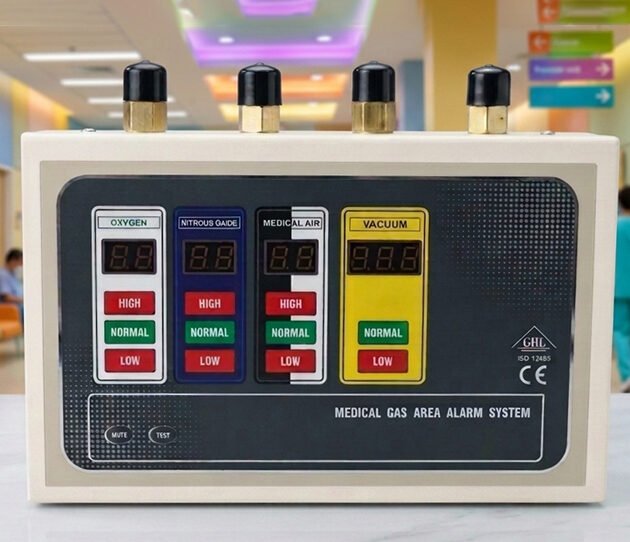

Medical Gas Digital Area Alarm System – Apollo Plus
A Digital Area Alarm Unit is a microprocessor-controlled medical device that monitors pipeline pressures for various medical gases. It features High-intensity digital LED readouts.
- Display: Digital Display in PSI with High/Low and Normal LED Indicators
- Body and Finish: Powder Coated MS Box
- Pressure Sensing Device : Microprocessor based PCB mounted self-calibrating pressure sensor
- Alarming System: Audio and Visual Signal with Mute Facility
- NIST Connections: Optional and Customer demand specific
- Inlet Port for Gases: 3/8 BSP nut with 12mm Nipple
- Configuration: 1 Gas to 6 Gas
- Power Supply: 220 Volt AC
- Gas Service : Designed to suit all gases
- Temperature Span: 0 – 50 Degree Celsius

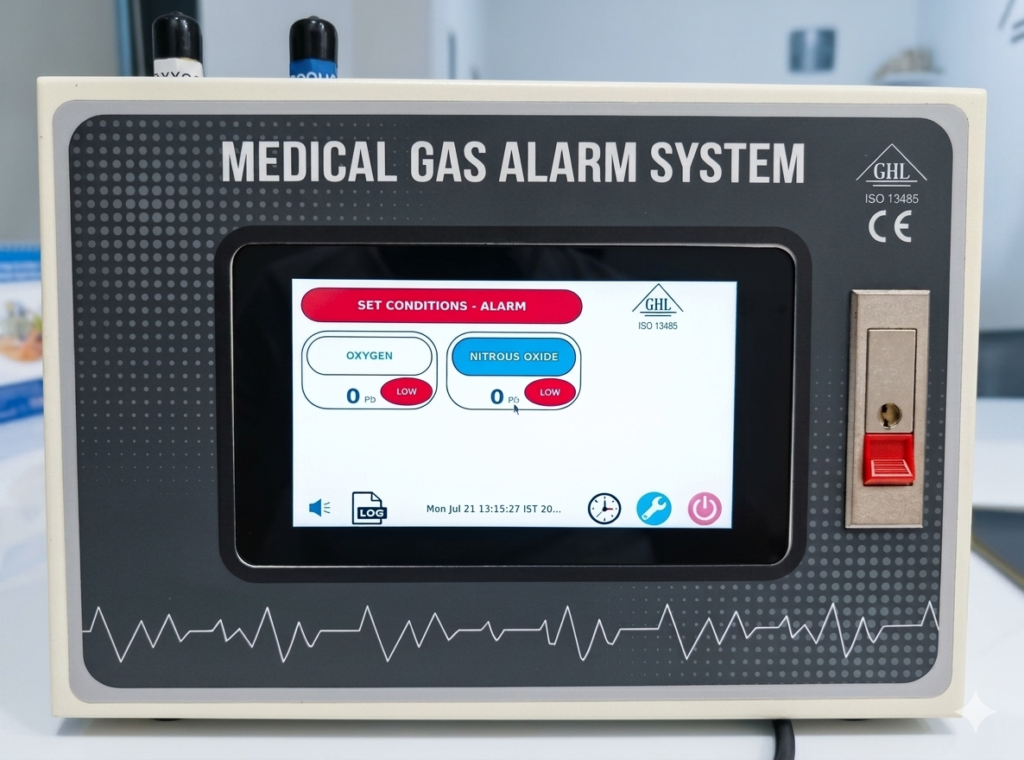

Medical Gas LCD Area Alarm System – Apollo Premium
An LCD-based Area Alarm Unit is a digital monitoring system featuring visual LCD (Touch Based) status indicators and audible alerts when gas levels breach the set limits.
- Display: 7” LCD Touch Screen display
- Body and Finish: Powder Coated MS Hinged Box
- Pressure Sensing Device: Microprocessor based PCB mounted self-calibrating pressure sensor
- Alarming System: Audio and Visual Signal with Mute Facility
- NIST Connections: Optional and Customer demand specific
- Inlet Port for Gases: 3/8 BSP nut with 12mm Nipple
- Configuration: 1 Gas to 6 Gas
- Display and Audio Blocker: Provision to temporarily suspend any gas service
- Power Supply: 220 Volt AC
- Gas Service: Designed to suit all gases
- Temperature Span: 0 – 50 Degree Celsius
- Gas monitoring: Call Log facility for Gas Pressure monitoring
- Security: Changes in Pressure Settings and Gas selection is password protected.
