Anaesthesia Machine Equipment

An Anaesthesia Machine is a high-precision medical device that generates and delivers a continuous, controlled flow of respiratory gases mixed with anaesthetic agents to sustain a patient under general anaesthesia. We provide a range of equipment to help manufacturers attain maximum accuracy and sustainability from their machines through our products.

What We Offer

Selecta-Tec Bar Single and Double for Vaporizer
Drager Mount for Vaporizer
Table Regulator (O2 and N2O)

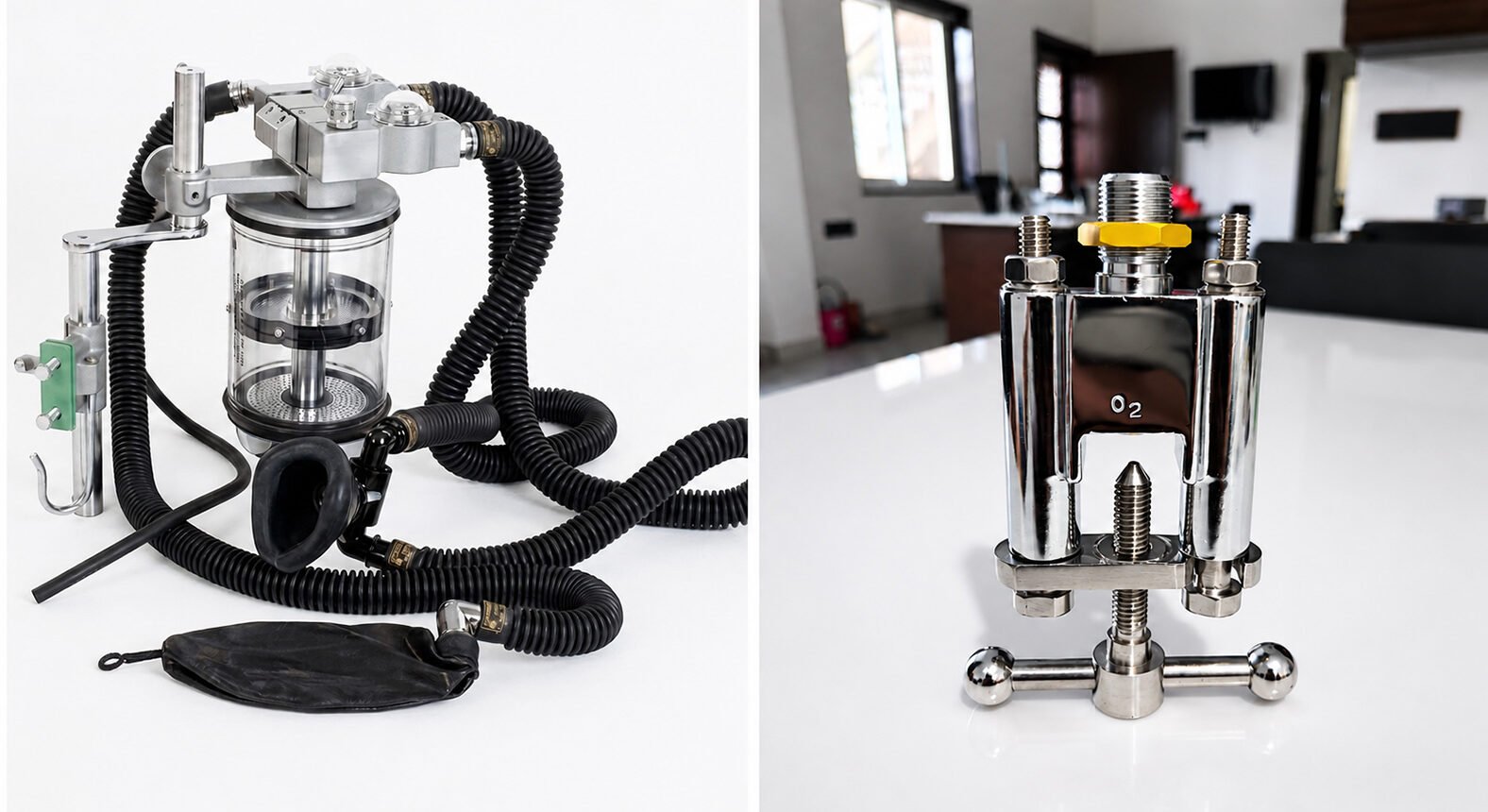

Circle Absorber
Oxygen Failure Warning Device (OFWD)
Forged Yoke Assembly
Yoke Insert
Quick Connect Assembly

The above products are manufactured specifically on customer demand

Technical Specifications

We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

Selecta-Tec Bar Single (Brass)

A Selecta-Tec Bar Single is a standardized quick-connect brass bracket used to securely mount a single anaesthetic vaporizer on anaesthesia machines. It has dual valve capsules on top that automatically open when a vaporizer is locked into place, allowing carrier gas to flow through the agent in the vaporizer.

Material: Extruded Brass
Inlet and Outlet Connection: ISO 23mm Taper Male and Female
Vaporizer Mount: Tec 7 Type Vaporizers
Mounting Station for: Single Vaporizer
Shape: Rectangular with Rounded Vertices
Finish: Chrome Plaited
Test Pressure: 4 Kgs

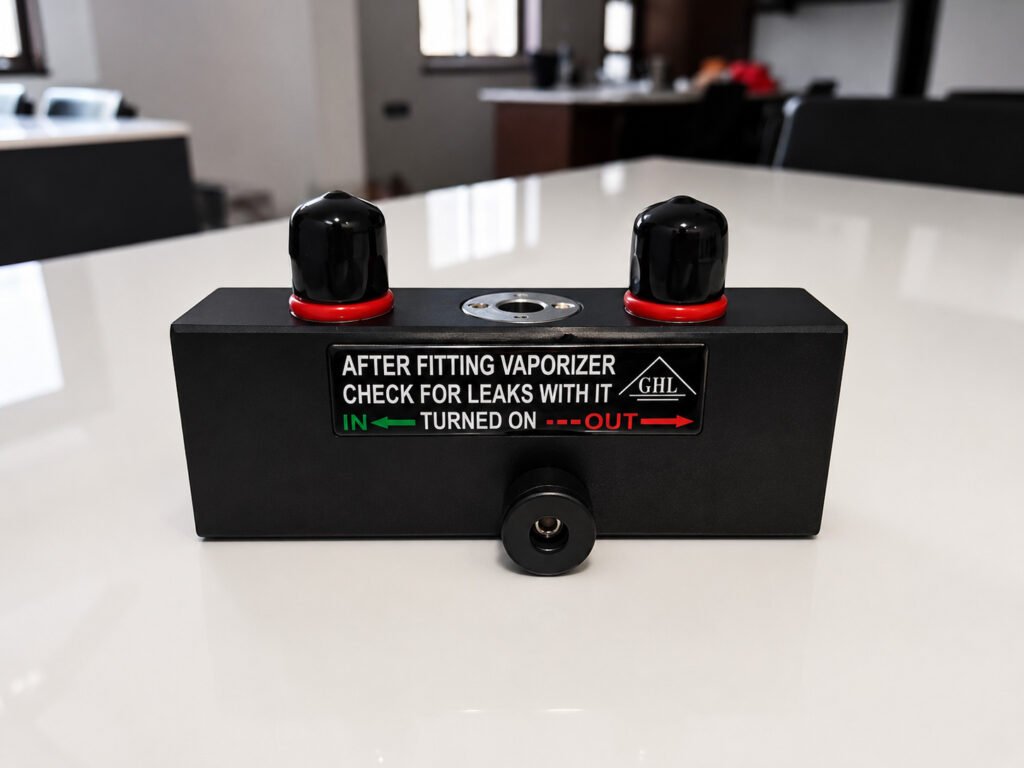

Selecta-Tec Bar Single (Aluminium)

A Selecta-Tec Bar Single is a standardized quick-connect aluminium bracket used to securely mount a single anaesthetic vaporizer on anaesthesia machines. It has dual valve capsules on top that automatically open when a vaporizer is locked into place, allowing carrier gas to flow through the agent in the vaporizer.

Material: Medical Grade Aluminum (As per Specification)
Inlet and Outlet Connection: ¼ BSP Female (Back Entry)
Vaporizer Mount: Tec 7 Type Vaporizers
Mounting Station for: Single Vaporizer
Shape: Rectangular with Rounded Vertices
Finish: Hard Anodized (Black)
Test Pressure: 4 Kgs

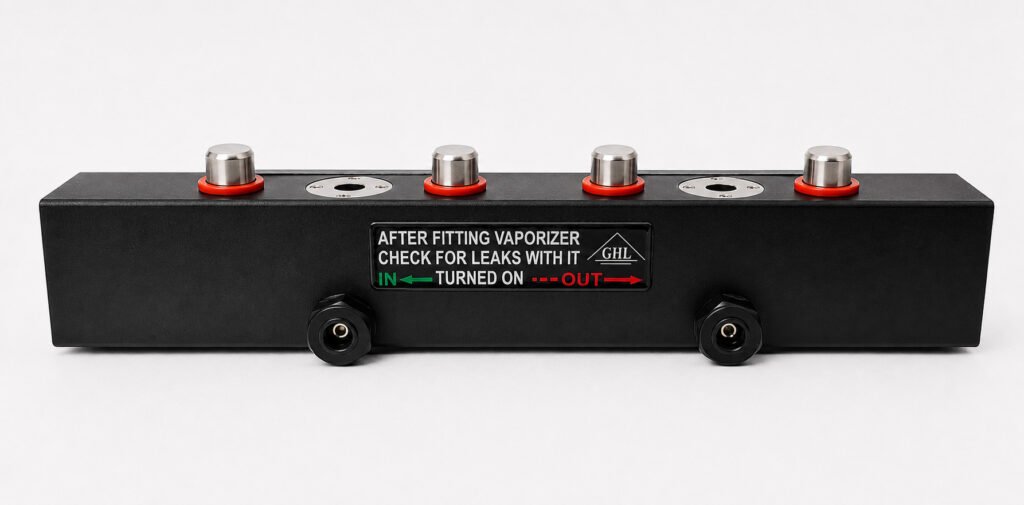

Selecta-Tec Bar Double

A Selecta-Tec Bar Double is a standardized quick-connect aluminium bracket used to securely mount two anaesthetic vaporizer on anaesthesia machines side by side. The interlock mechanism is designed in such a way that it prevents both vaporizers from being turned on at the same time, further eliminating the risk of accidental agent mixing.

Material: Medical Grade Aluminum (As per Specification)
Inlet and Outlet Connection: ¼ BSP Female (Back Entry)
Vaporizer Mount: Tec 7 Type Vaporizers
Mounting Station for: Two Vaporizer
Shape: Rectangular with Rounded Vertices
Finish: Hard Anodized (Black)
Test Pressure: 4 Kgs

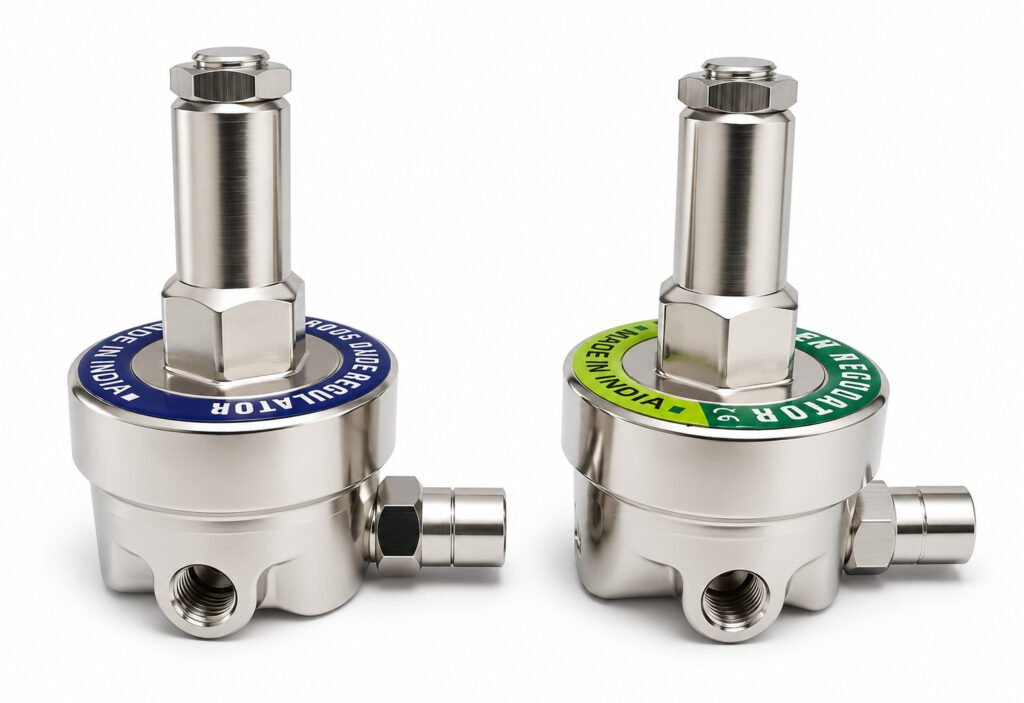

Table Regulator

A Table Regulator is a pressure-reducing gas regulator mounted in an anaesthesia machine. It serves in dropping high cylinder pressures down to operating levels.

Material: Brass Forged Body and Bonnet
Inlet and Outlet Connection: As per customer specification
Finish: Chrome Plated/Polished
Safety (SRV): Provision as per customer specification
Preset Pressure: 4.21 Kg/cm2
Inlet Pressure: 150 kg/cm2
Gases: Oxygen and Nitrous-Oxide
Test Pressure: 150 kg/cm2
