Modular OT Equipment

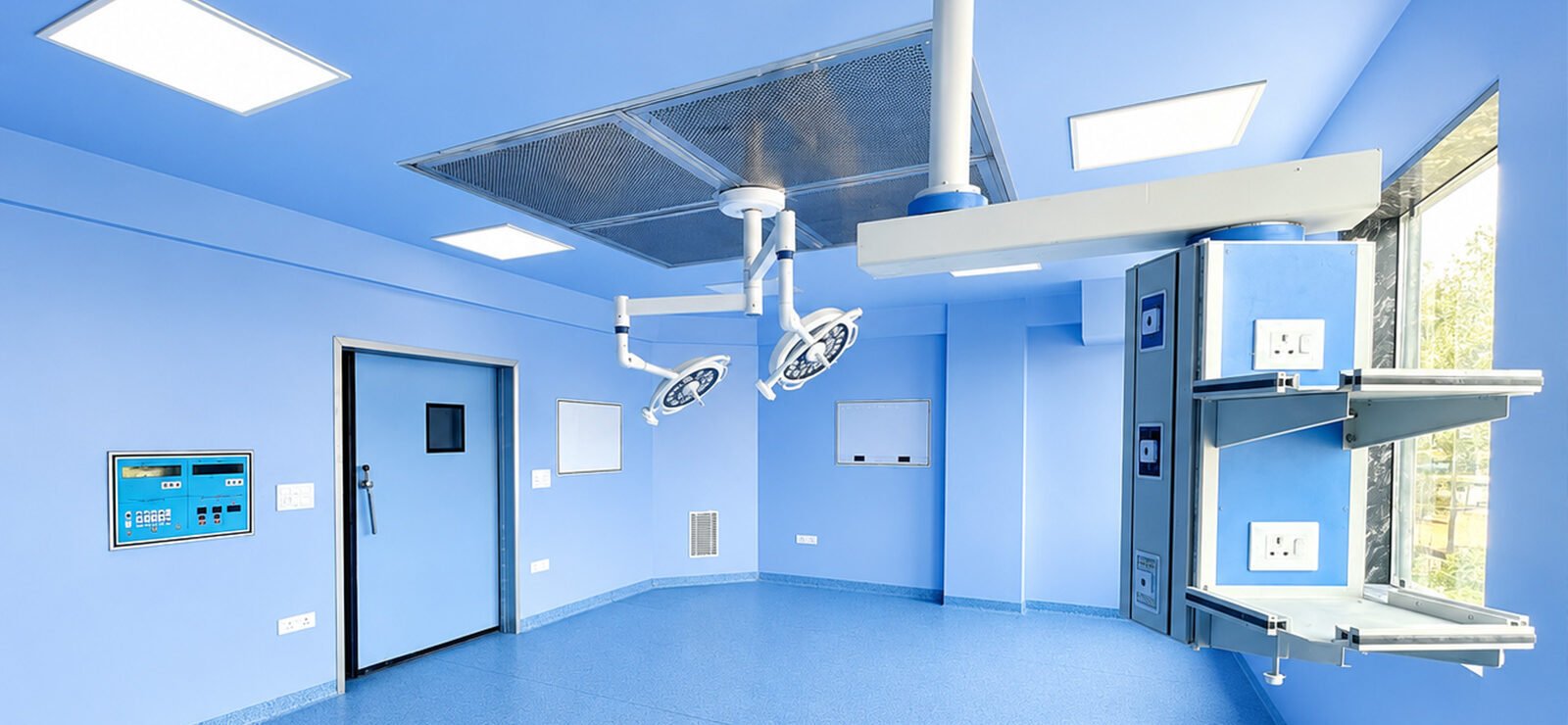

A Modular Operation Theatre (OT) integrates prefabricated wall panels, ventilation systems, and ceiling-suspended light and pendants into a seamless, highly sterile and convenient surgical environment. We manufacture a few of its primary equipment and core components that define a modern modular operation theatre.

Features

Surgeons Control Panel features can be customized as per customer choice
Membrane type as well as LCD Type Surgeons Control Panel available
Separate provision to control OT lights available in Surgeons Control Panel
Peripheral Lights (Dimmable) comes with separate SMPS to be placed in the ceiling
Surgical and Anaesthesia Pendants are also available

Technical Specifications

We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

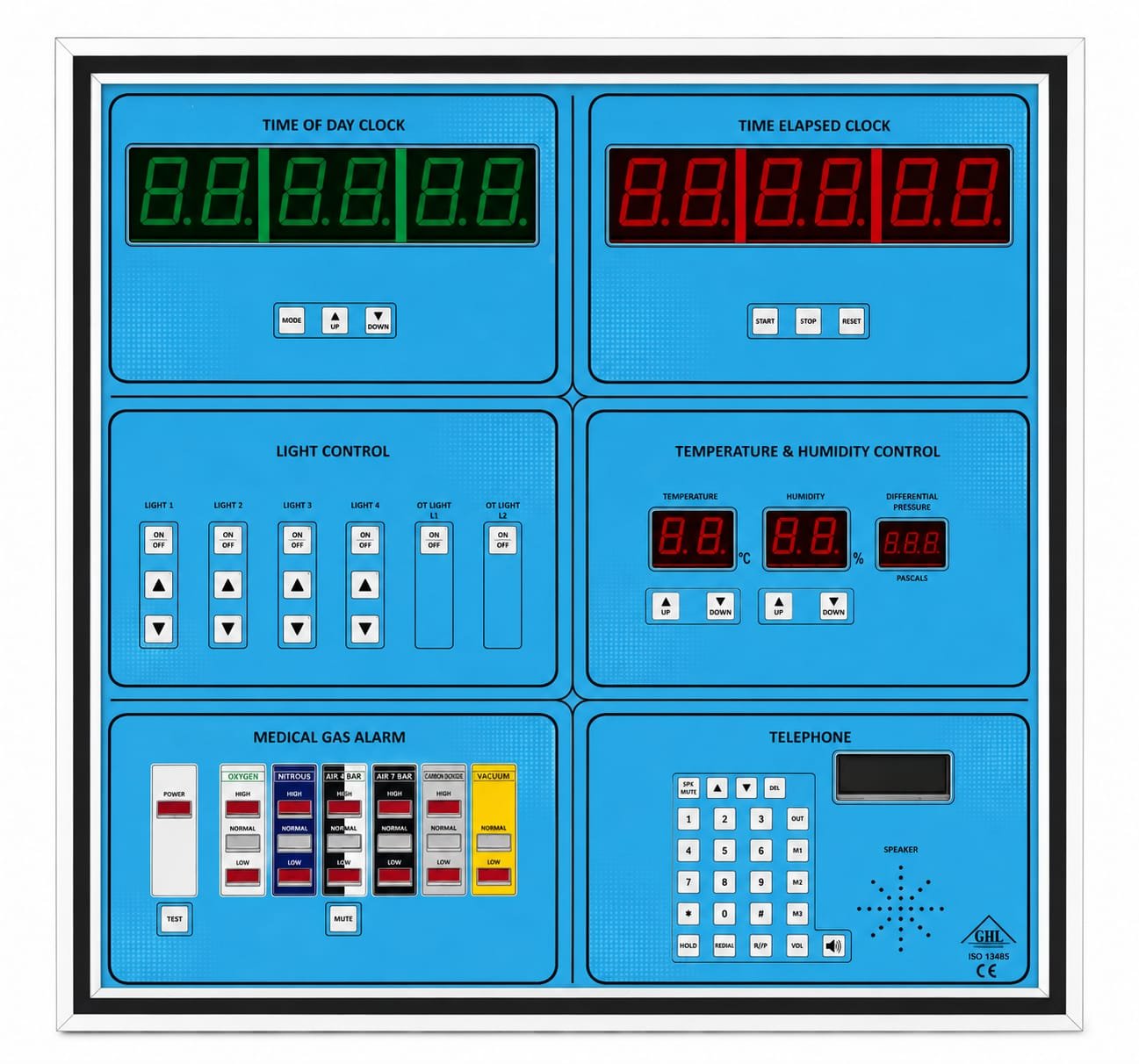

Surgeon Control Panel

This is a centralized, wall-mounted device in a modular operating theatre (OT) that allows monitoring and adjustment of room climate, lighting, and medical gases from inside the sterile zone.

Material: MS Body with Aluminum Frame and base plate
Clocks: Day and Elapsed Time Digital Clock with Date
Communication: Hands Free Telephone with memory function
Light Control: Up to 16 Peripheral Light and OT Light
Gas Alarm: Gas Alarm for 6 gases with Test & Mute Facility
Sensors: Temperature, Humidity and Differential Pressure
Colors: 7 Colour Options
Power Input: 220 Volt AC

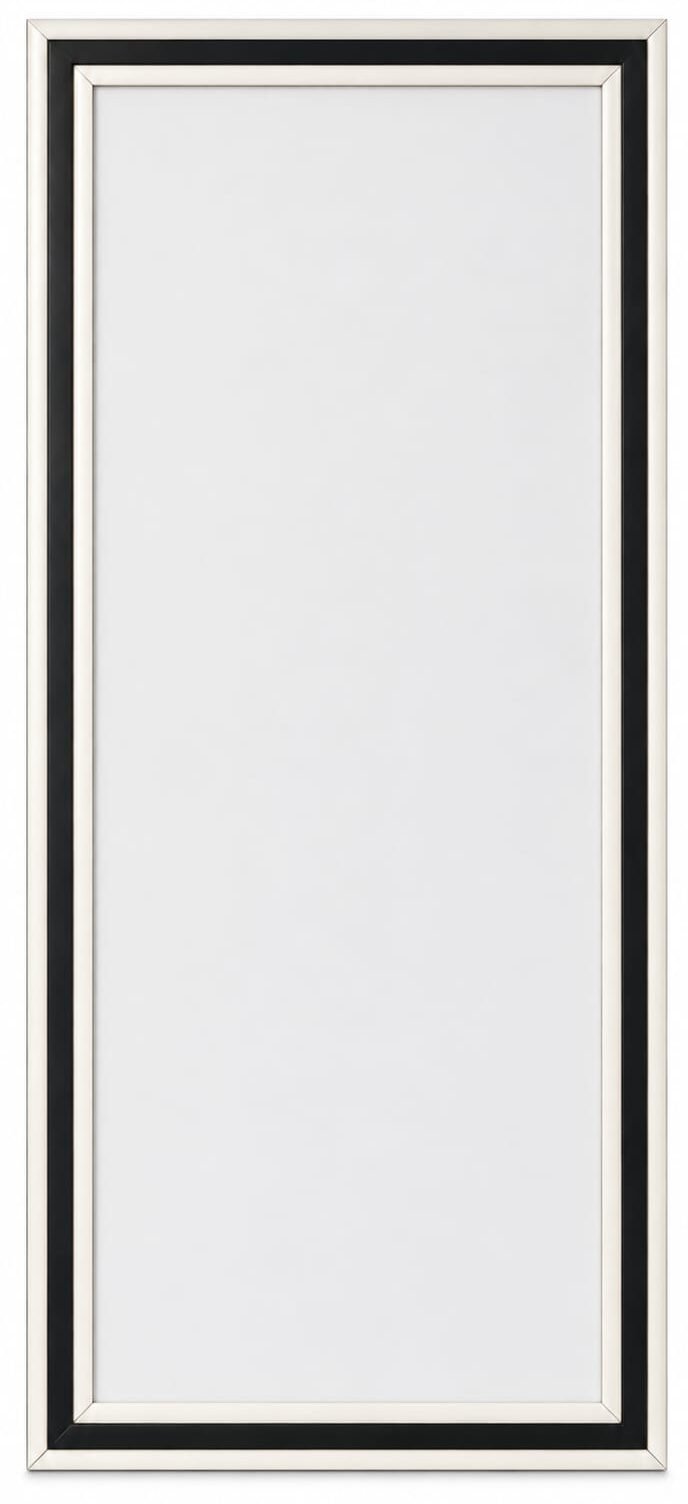

Peripheral Light

Peripheral lights for Operating Theatres (OT) are specialized, cleanroom-compliant ceiling panels installed around the perimeter of a surgical room.

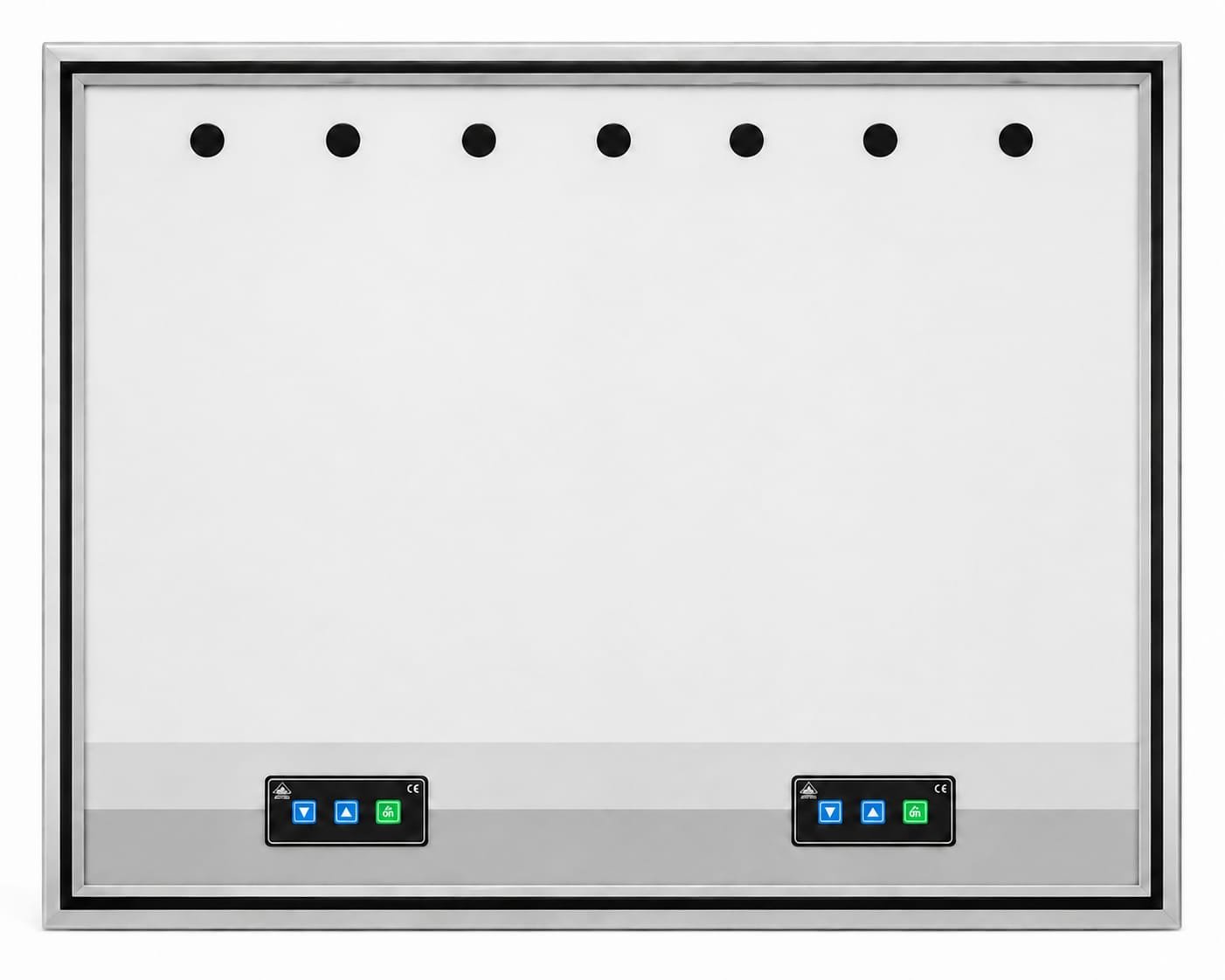

X Ray Viewer (Two Plate)

A two-tile X-ray viewer is a wall-mounted medical illuminator designed to display two standard radiography films side-by-side.

Material: MS Body with Aluminum Frame
Light Technology: LED (Dimmable)
Shape: Rectangular (2 Plate)
LED Lifetime: Up to 50000 Hrs
Power Input: 220 Volt AC
Brightness: 4000 Lux

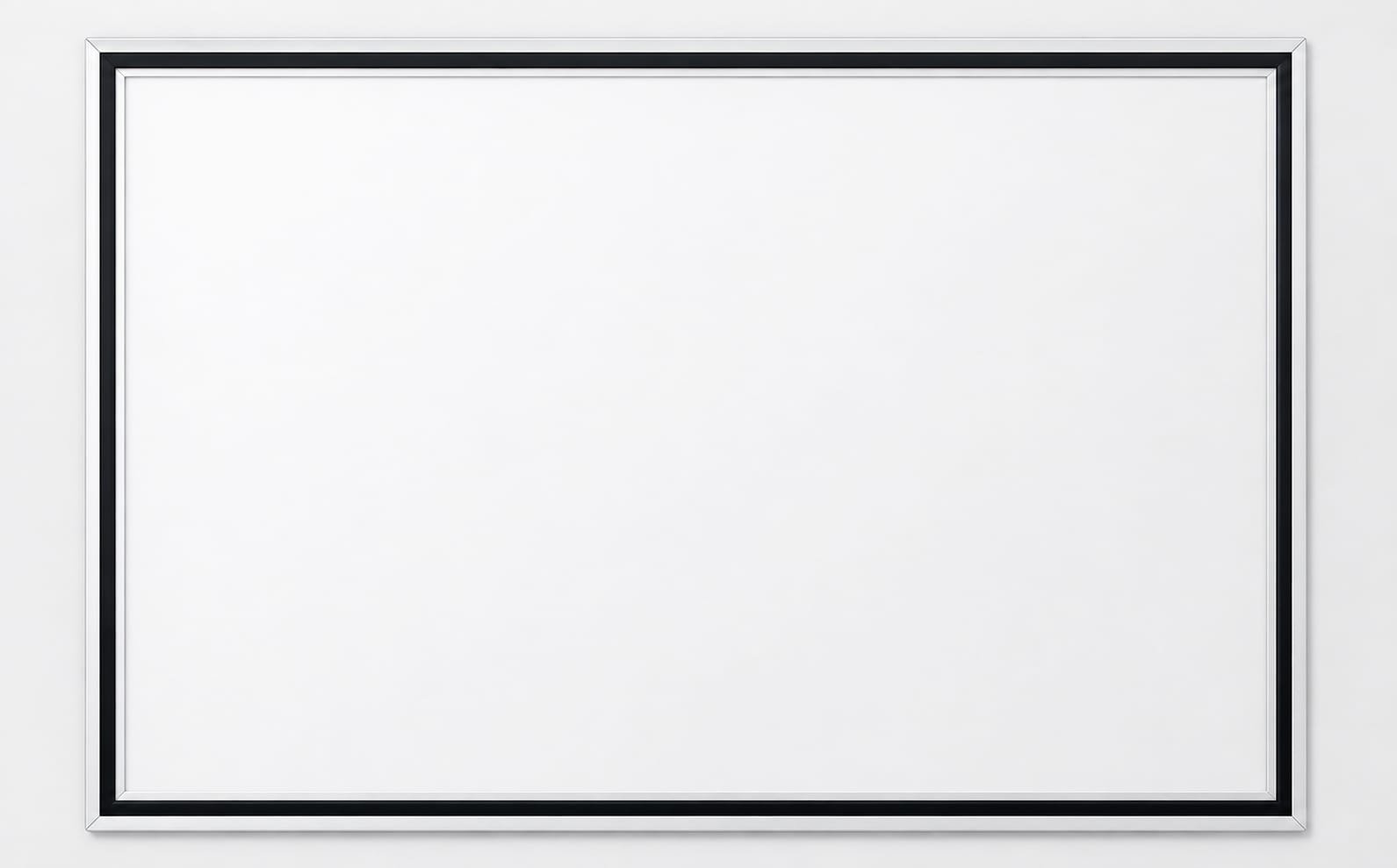

Writing Board

A magnetic writing board is a specialized, cleanroom-compliant information panel installed to display surgical checklists, patient vitals and surgical timelines
