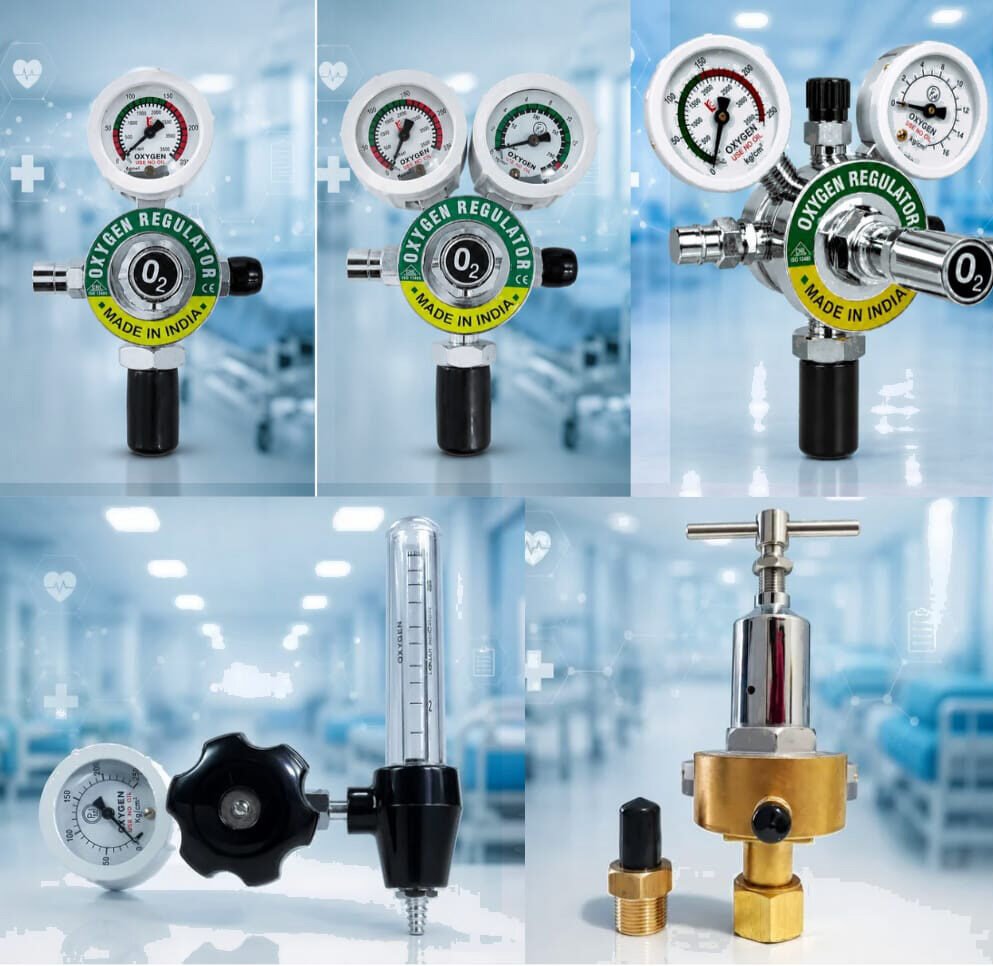

Medical Gas Regulators

The NOVA series regulators are designed primarily for controlling high-pressure oxygen gas from cylinders or pipelines. It is widely used across both Industrial and Medical environments

Features

These regulators are used on manifolds, control panels and on cylinders directly
These regulators comes in both Single and Double Stage Pressure reduction option
The regulators can be Electroplated as per customer demand
The regulators are available for Oxygen, N2O, Co2, Air and Nitrogen with respective standardized inlet connections.
The Regulators comes with option of both single gauge and double gauge monitoring
These regulators comes with Safety Devices for sudden unintentional high pressure
Standardized outlet connection are available with regulators

Technical Specifications

We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

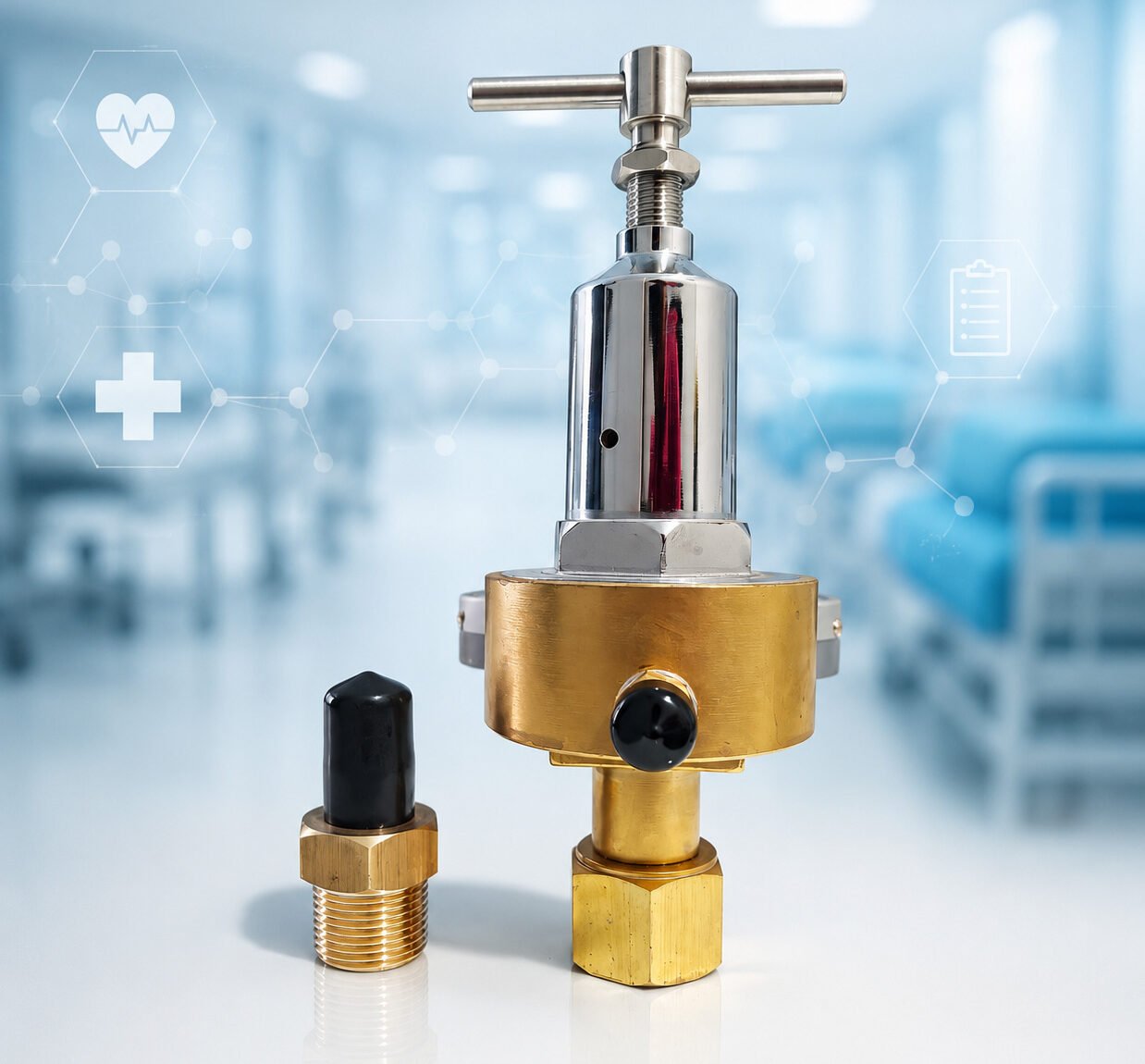

NOVA – HD (Heavy Duty Regulator)

This Heavy-duty regulator is a single-stage, high-flow pressure regulator primarily for high flow requirement from a medical manifold or Gas Cylinder.

Material: Brass Forged Body and Bonnet
Inlet Connection: 1 Inch BSP female
Outlet Connection: 3/8 BSP Male
Inlet Pressure: 0-150kg/cm2
Pressure Regulation: Single Stage
Filter: Wire Mesh Filter
Operating Mechanism: Rubber Diaphragm Type
Test Pressure: 150 kg

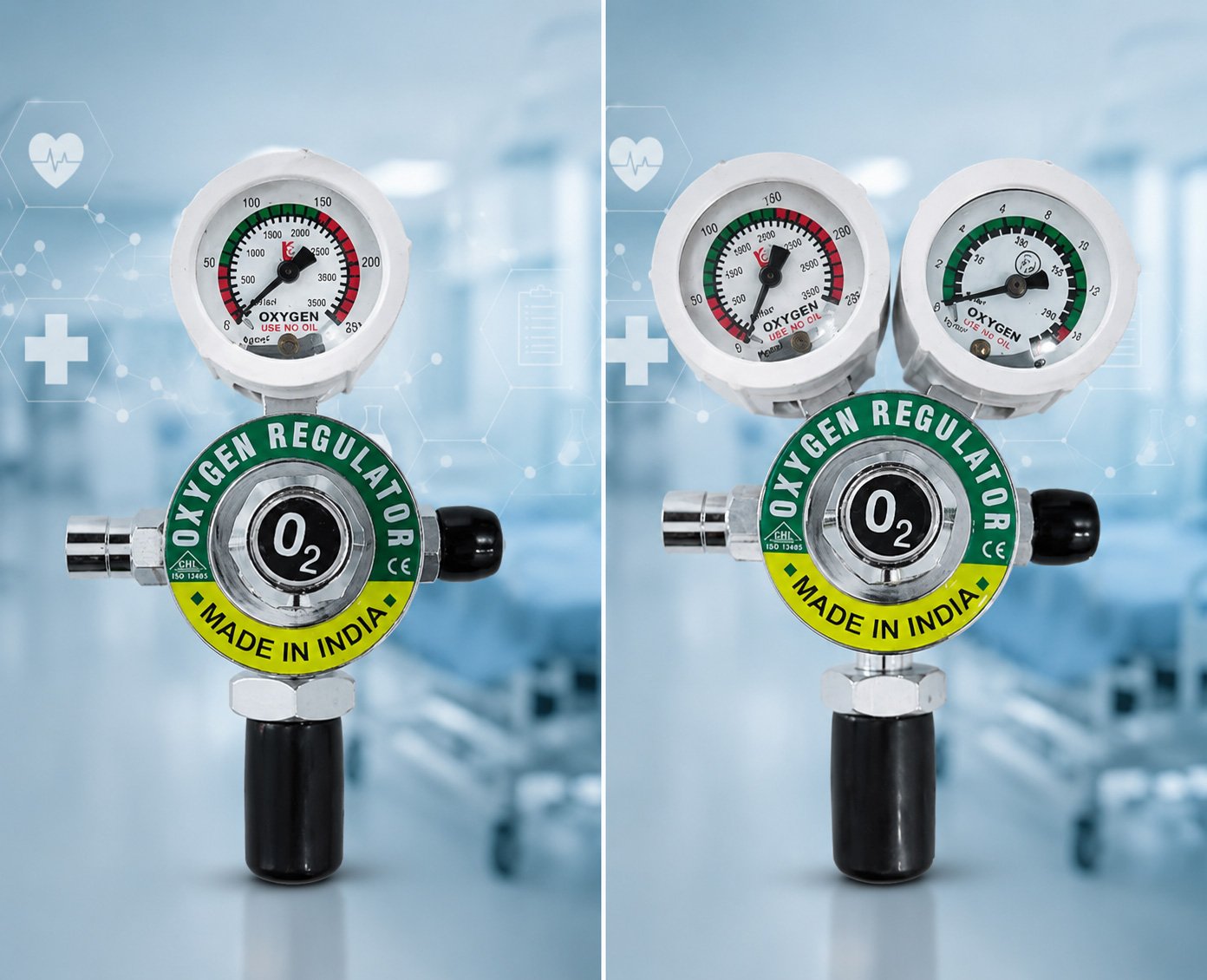

NOVA – Single Stage

A single-stage regulator is a standard device designed to perform a single-step pressure reduction from a high-pressure oxygen cylinder down to a stable working pressure

Material: Brass Forged Body and Bonnet
Inlet Connection: Gas Service Specific
Outlet Connection: Gas Service Specific
Pressure Regulation: Single Stage
Inlet Pressure: 0-150kg/cm2
Outlet Pressure: 4.2 kg
Gas Monitoring: Provision for both Single gauge & Double gauge
Filter: Sintered Bronze Filter
Operating Mechanism: Rubber Diaphragm Type
Test Pressure: 150 Kg

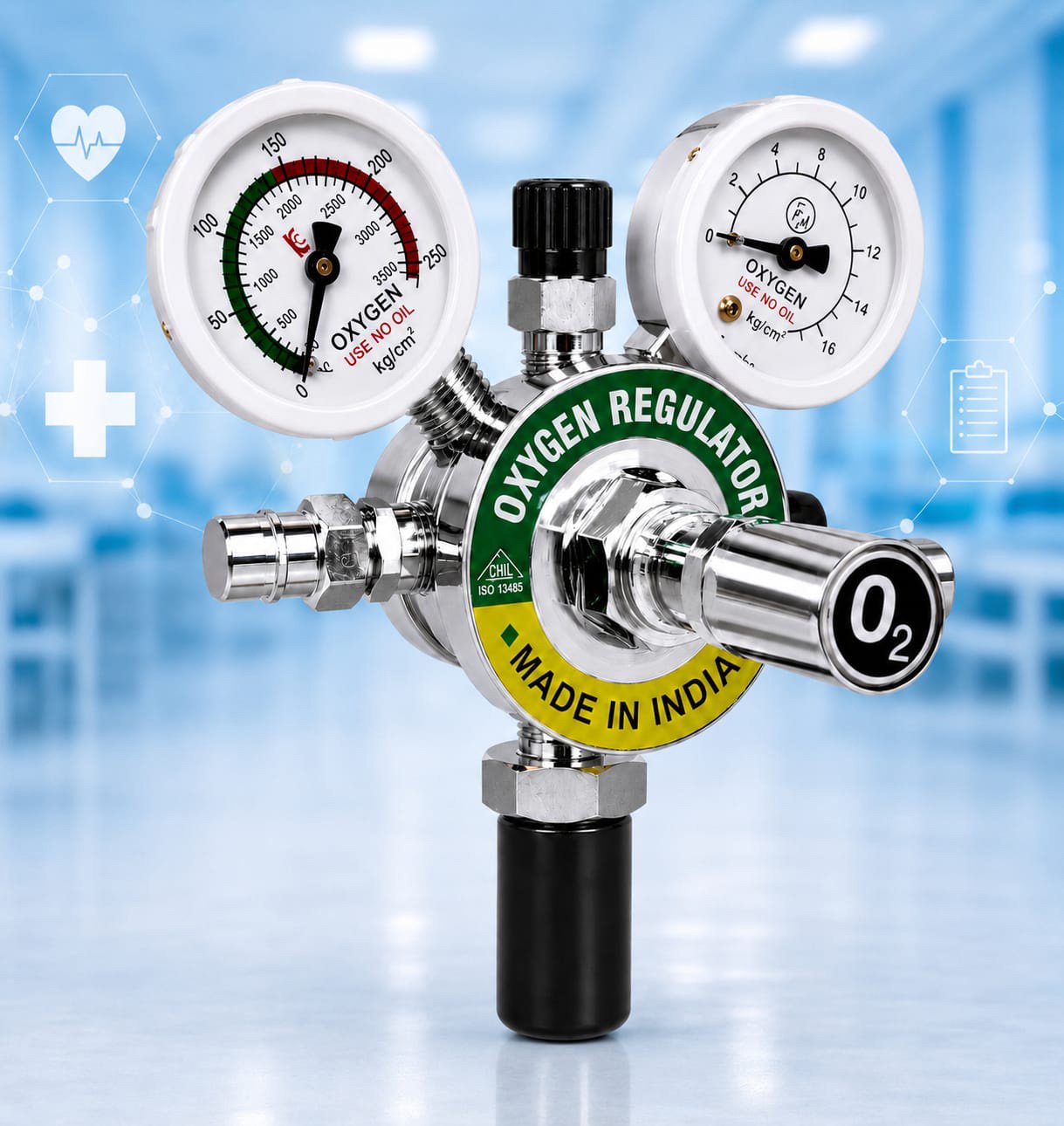

NOVA – Two Stage

A double-stage mechanism relies on two consecutive internal chambers and diaphragms to drop high cylinder pressures down to safe clinical limits

Material: Brass Forged Body and Bonnet
Inlet Connection: Gas Service Specific
Outlet Connection: Gas Service Specific
Pressure Regulation: Two Stage
Inlet Pressure: 0-150kg/cm2
Outlet Pressure: 4.2 kg
Gas Monitoring: Double gauge
Filter: Sintered Bronze Filter
Operating Mechanism: Rubber Diaphragm Type
Test Pressure: 150 Kg

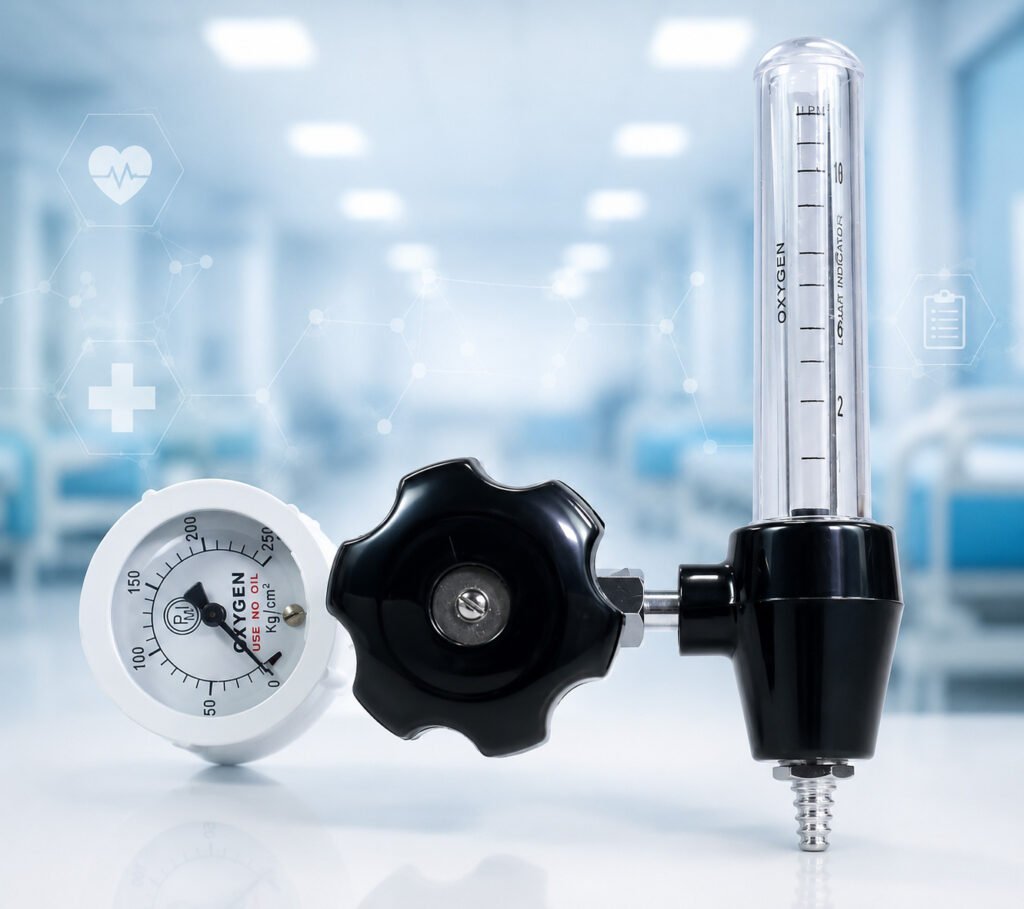

NOVA – Basic (FA Valve)

FA Valve allows clinicians to make granular adjustments to the volume of oxygen delivered directly to a patient’s respiratory circuit (typically between 0 to 15 Liters Per Minute)
