Area Valve Service Unit with Alarm

The Zeus and Zeus Pro series of Area Valve Service Unit (AVSU) is an integrated unit of Zonal Valve Boxes with Area Alarm System. It ensures the control of Medical Gases at the relevant service points after they leave the plant and manifold facility. They give an audio-visual warning in case the line pressure goes below or exceeds the set limit.

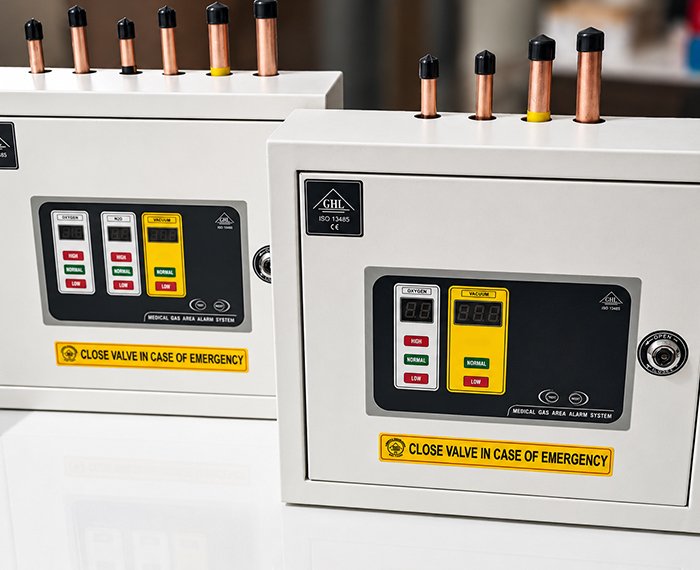

Features

Isolation of area in case of periodic maintenance, emergency or planned future expansion.
Valves and Alarm housed in a ergonomical and stylish metallic box.
Optional NIST connections for Emergency Gas Supply.
Full Bore Ball Valves are Medical Compatible
Self-Calibrating PCB Mounted sensors
Audio-Visual Alarm
Provision to alter the threshold pressure setting in consultation with Authorized Personnel
Support 2 to 6 individually monitored gases.
All Copper and Brass components and joints are duly Oxy-Cleaned.

Technical Specifications

We manufacture and supply a complete ecosystem of equipment that supports patient care from source to bedside.

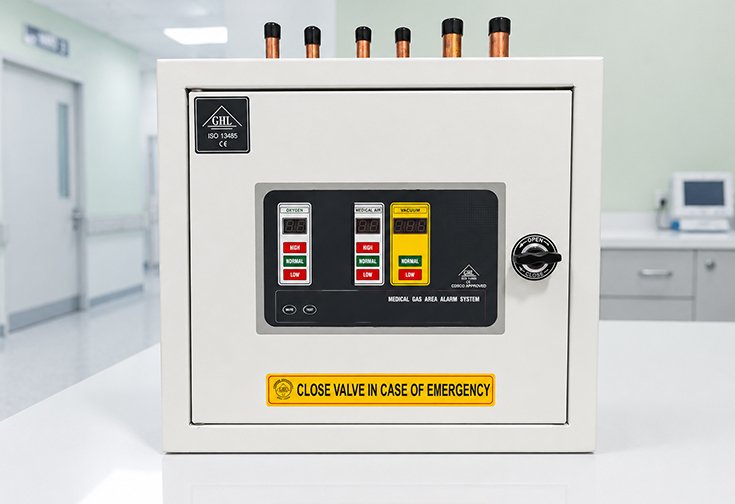

Area Valve Service Unit – Zeus Digital

Area Valve Service Unit (Digital) integrates isolation ball valves and a digital display panel within a unified wall cabinet. Instead of relying on mechanical dial gauges this unit provides real-time pressure readouts through electronic sensors.

Display: Digital Display in KG with High/Low and Normal LED Indicators
Isolation Valves: Full Port Ball Valves
Pressure Sensing Device: PCB Mounted Self-Calibrating Pressure Sensors
Alarming System: Audio and Visual Signal with Mute Facility
NIST Connections: Optional and Customer demand specific
Inlet Port for Gases: 15mm Copper (Positive) and 22mm Copper (Negative)
Copper Extension: Top Entry and Top Exit
Power Supply: 220 Volt AC
Gas Service: Designed to suit all gases

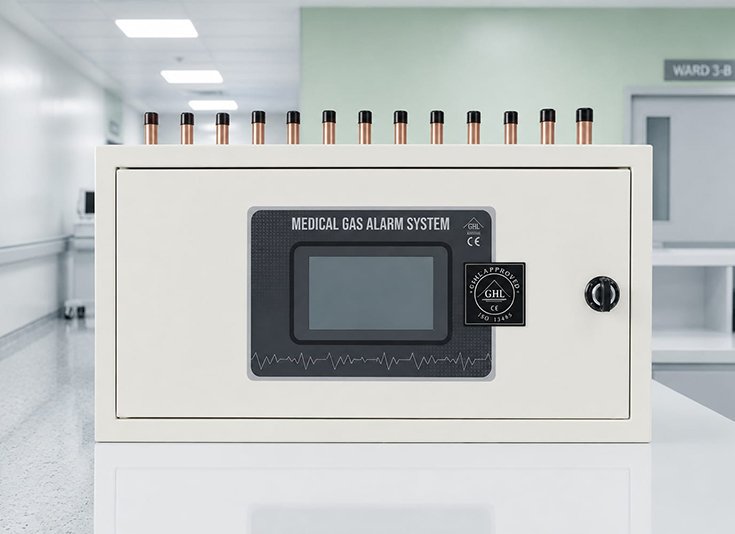

Area Valve Service Unit – Zeus Pro

Area Valve Service Unit (PRO) is embedding an active graphical LCD display screen, this configuration completely replaces basic mechanical dials and simple numerical LED nodes.

Display: 7 inch LCD Touch Panel with High/Low and Normal Indicators
Isolation Valves: Full Port Ball Valves
Pressure Sensing Device: PCB Mounted Self-Calibrating Pressure Sensors
Alarming System: Audio and Visual Signal with Mute Facility
Alarm Logs: Alarm Logs can be retrieved
NIST Connections: Optional and Customer demand specific
Inlet Port for Gases: 15mm Copper (Positive) and 22mm Copper (Negative)
Copper Extension: Top Entry and Top Exit
Display and Audio Blocker: Provision to temporarily suspend any gas service
Power Supply: 220 Volt AC
Gas Service: Designed to suit all gases
